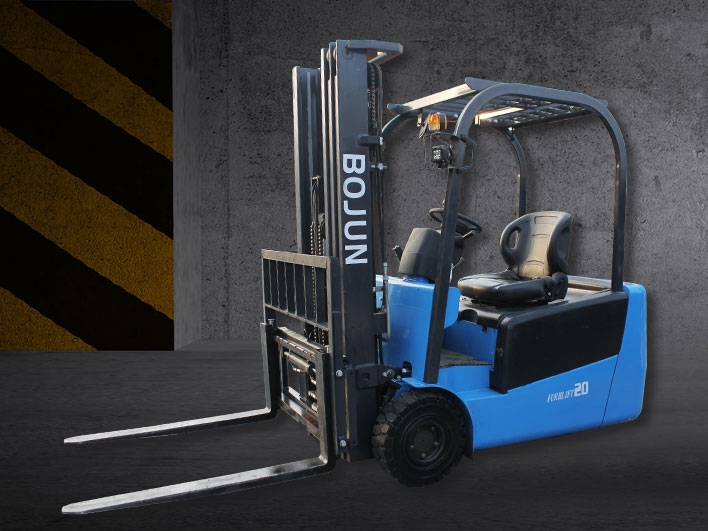

Lithium Electric Forklift
model | CPD20B | |
drive | electric | |
Manipulation form | Car | |
load capacity | kg | 2000 |
Load center | mm | 500 |
Overhang | mm | 425 |
Wheelbase | mm | 1350 |
Total weight (including battery) | mm | 110 |
Minimum turning radius | kg | 3600 |
Front/rear axle load, load | kg | 4901/699 |
Front/rear axle load, no load | 1672/1928 | |
Wheel category | SE | |
Front wheel size | 18*7-8 | |
Rear wheel size | 15*4.5-8 | |
Number of front/rear wheels, x=driving wheel | 2*/2 | |
Front track | mm | 930 |
Rear track | mm | 955 |
Forward angle/backward angle | ° | 5/8 |
Minimum height of mast | mm | 2070 |
Free lift height | mm | 140 |
Lifting height | mm | 3000 |
Maximum height of mast (from the ground) | mm | 3990 |
Height of overhead guard | mm | 2195 |
Seat height (off the ground) | mm | 1100 |
Towing pin height | mm | 460 |
full length | mm | 3170 |
Full length (excluding forks) | mm | 2100 |
Total width | mm | 1070 |
Fork size | mm | 40/120/1070 |
Comply with IS02328 fork frame/frame form A, B | 2A | |
Guardrail margin | mm | 1100 |
Minimum height from the ground at the mast | mm | 95 |
Minimum height from the ground at the frame | mm | 90 |
Channel width (1000*1200 horizontal tray) | mm | 3646 |
Channel width (800*1200 horizontal tray) | mm | 3845 |
Minimum turning radius | mm | 2020 |
Inward turning radius | mm | 555 |
Driving speed, load/no load | km/h | 20/20 |
Lifting speed, load/no load | mm/s | 420/450 |
Lowering speed, load/no load | mm/s | 500/400 |
Maximum traction force, S2=5min, load/no load | KN | 12.7/9.0 |
Maximum climbing ability, S2=5min, load/no load | % | 20/20 |
Acceleration time, load/no load (0-10m) | S | 4.9/4.3 |
Braking form | Mechanical/Hydraulic | |
Drive motor power, S2=60min | KW | 4.5*2 |
Hoisting motor power, S3=15%ED | KW | 11.5 |
battery capacity | V/Ah | 48/540 |
Battery weight | kg | 540 |
Electric control system | AC | |
Hydraulic system working pressure | Mpa | 14.2 |
Noise from the driver | dB(A) | ≦75 |
Traction connection method | PIN |
