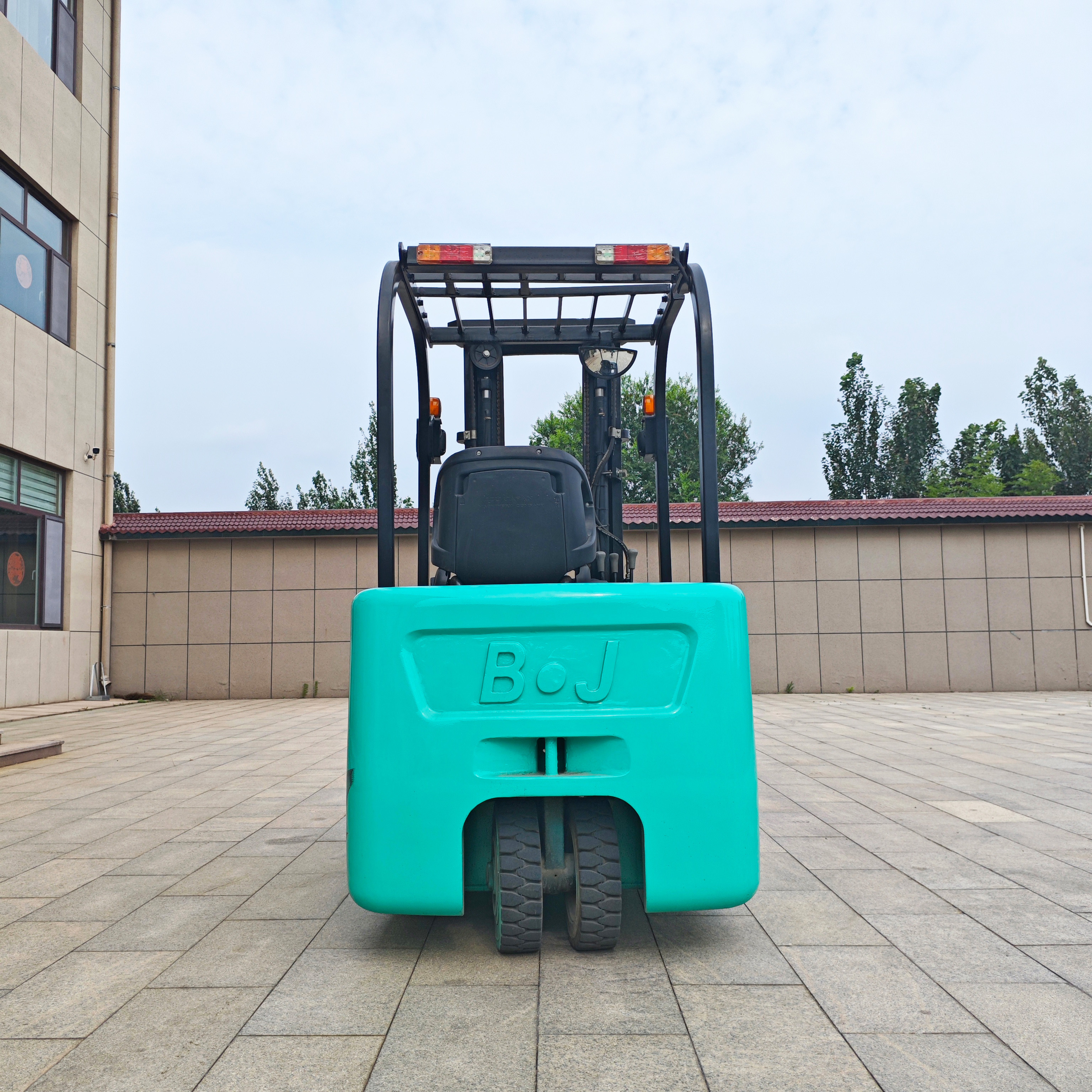

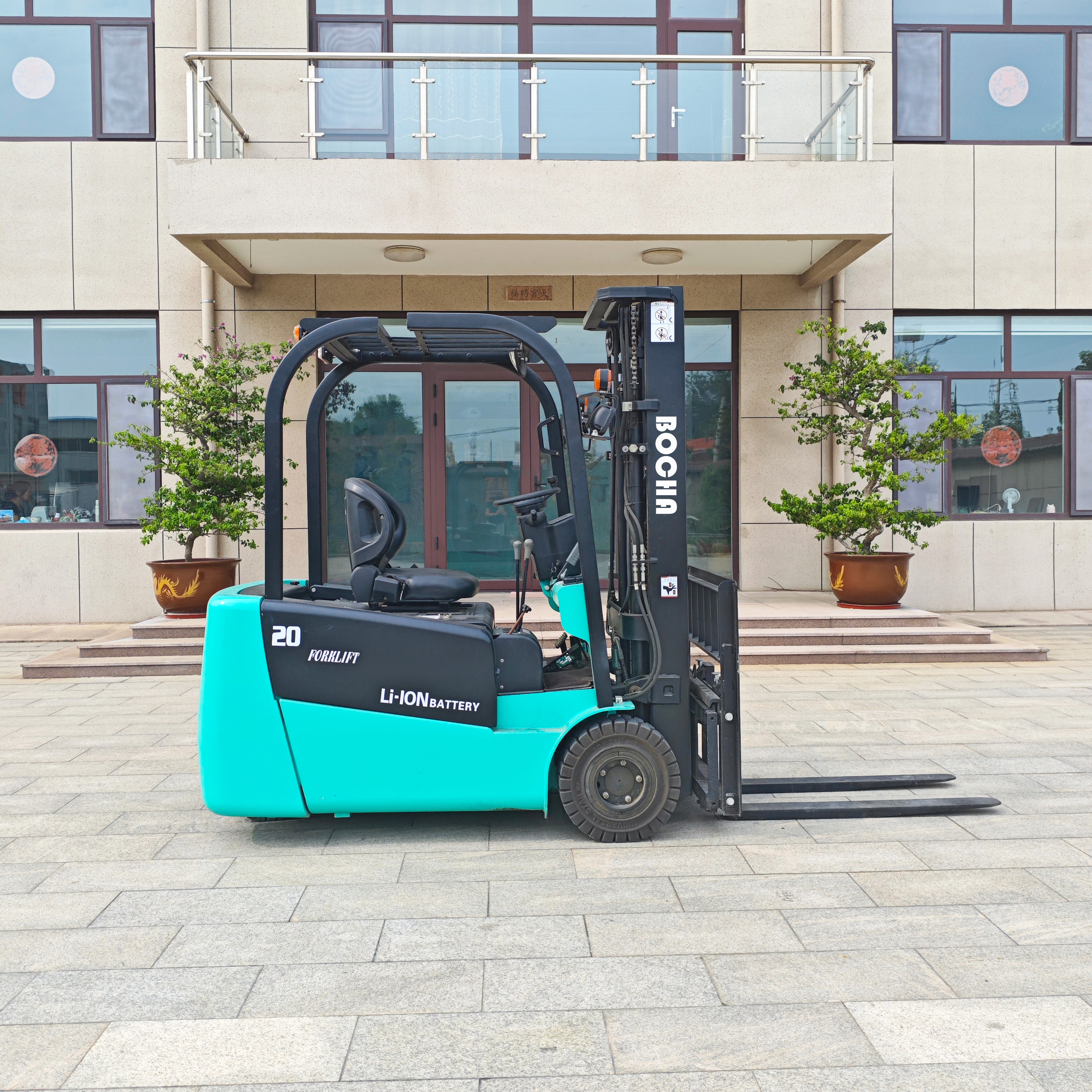

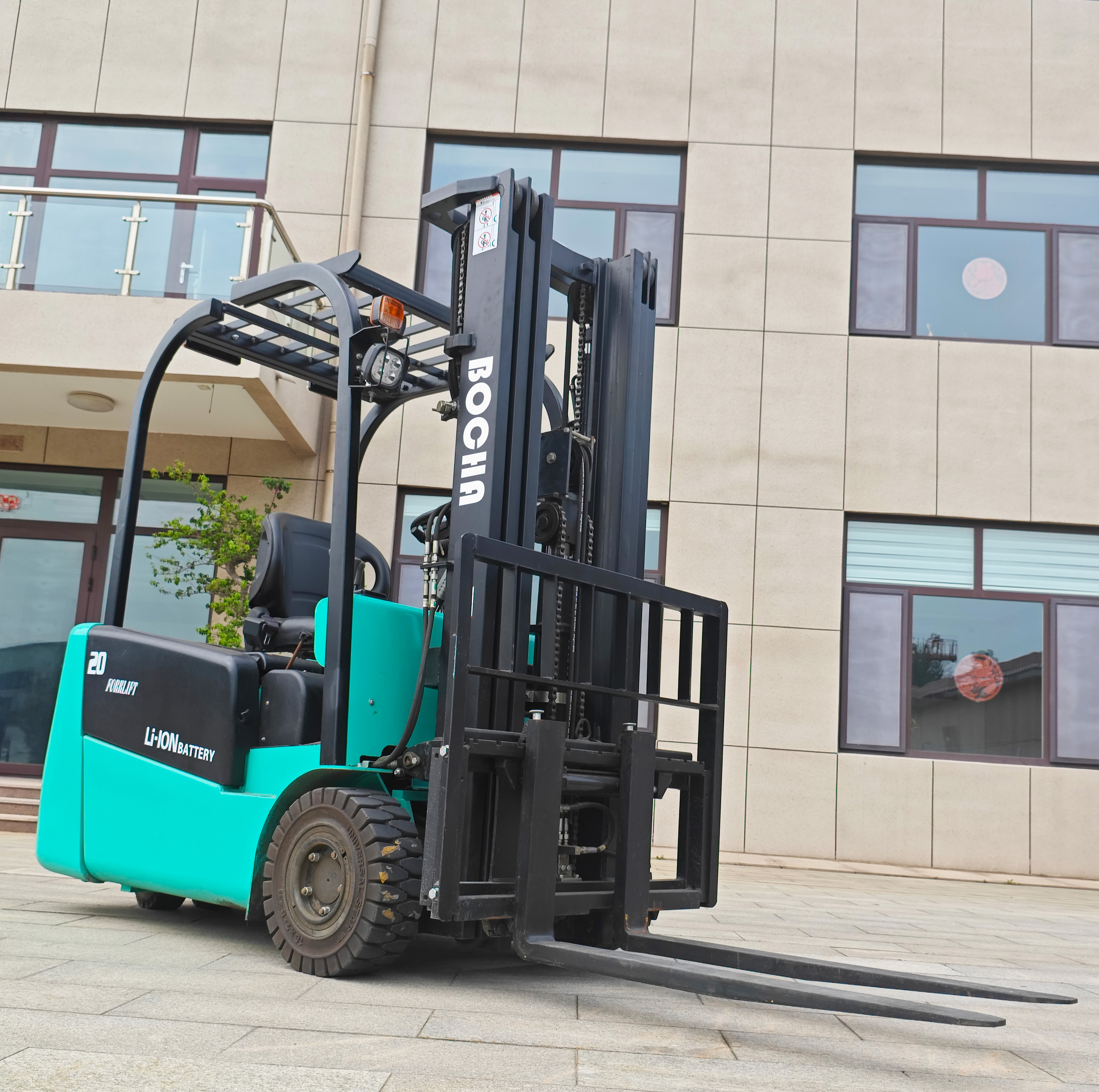

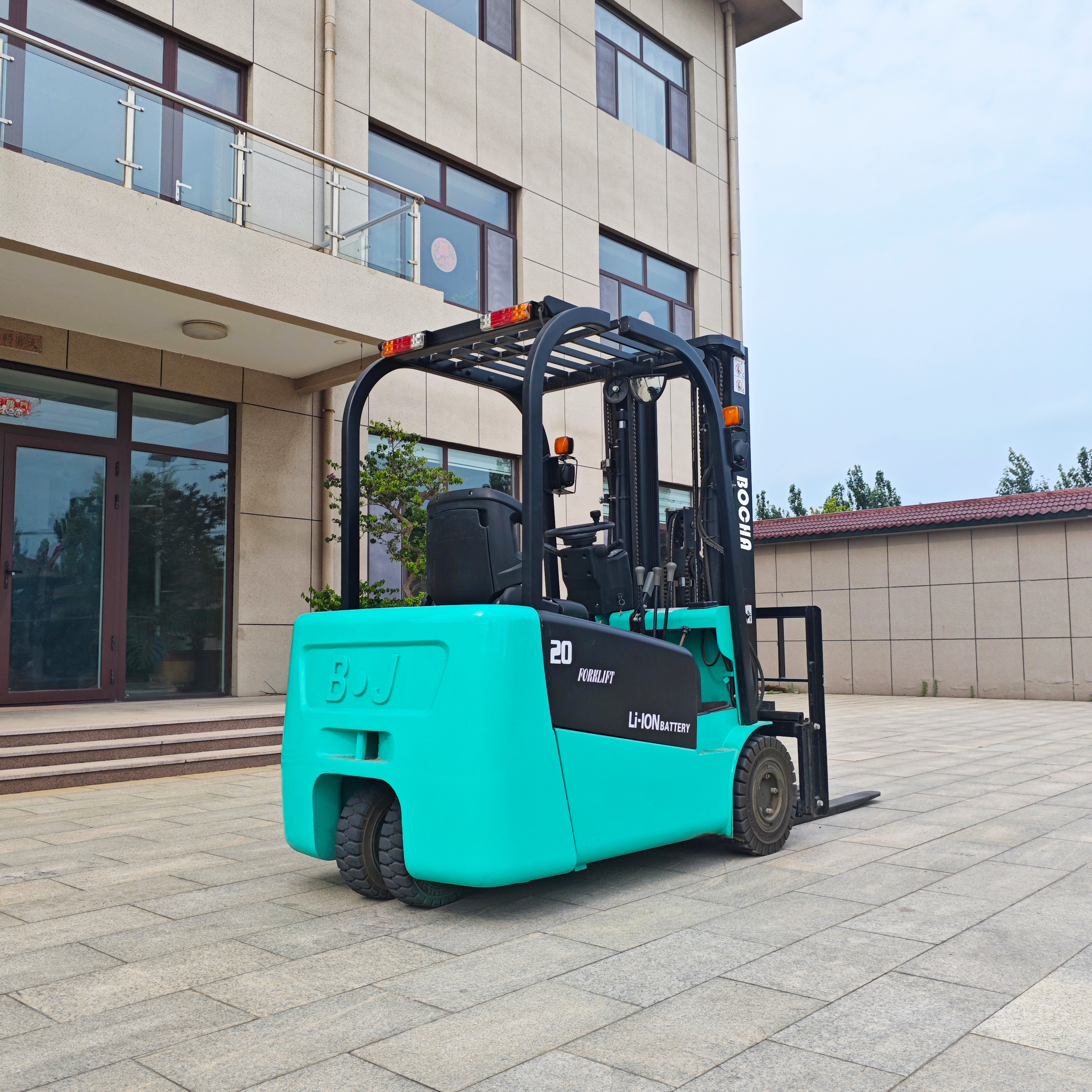

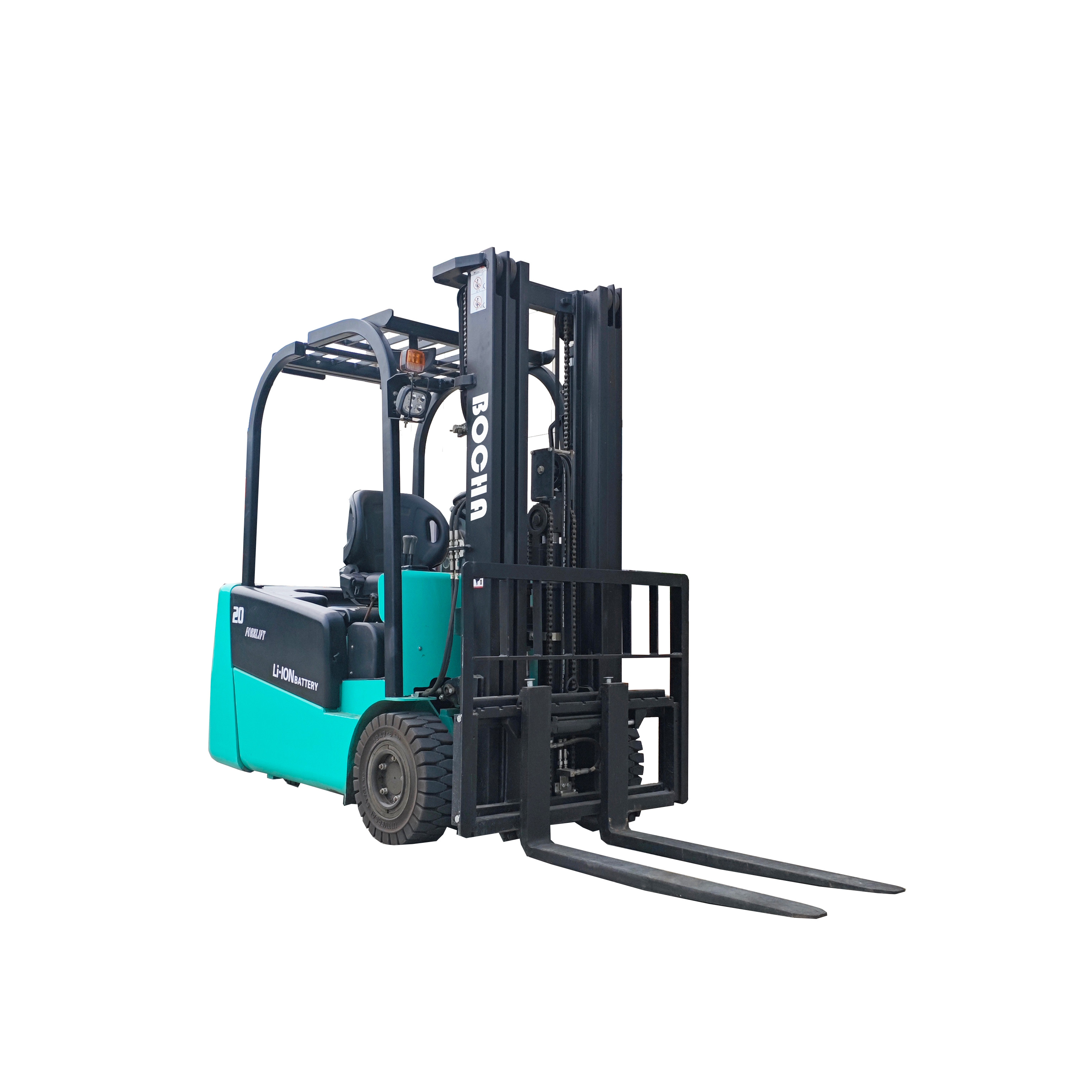

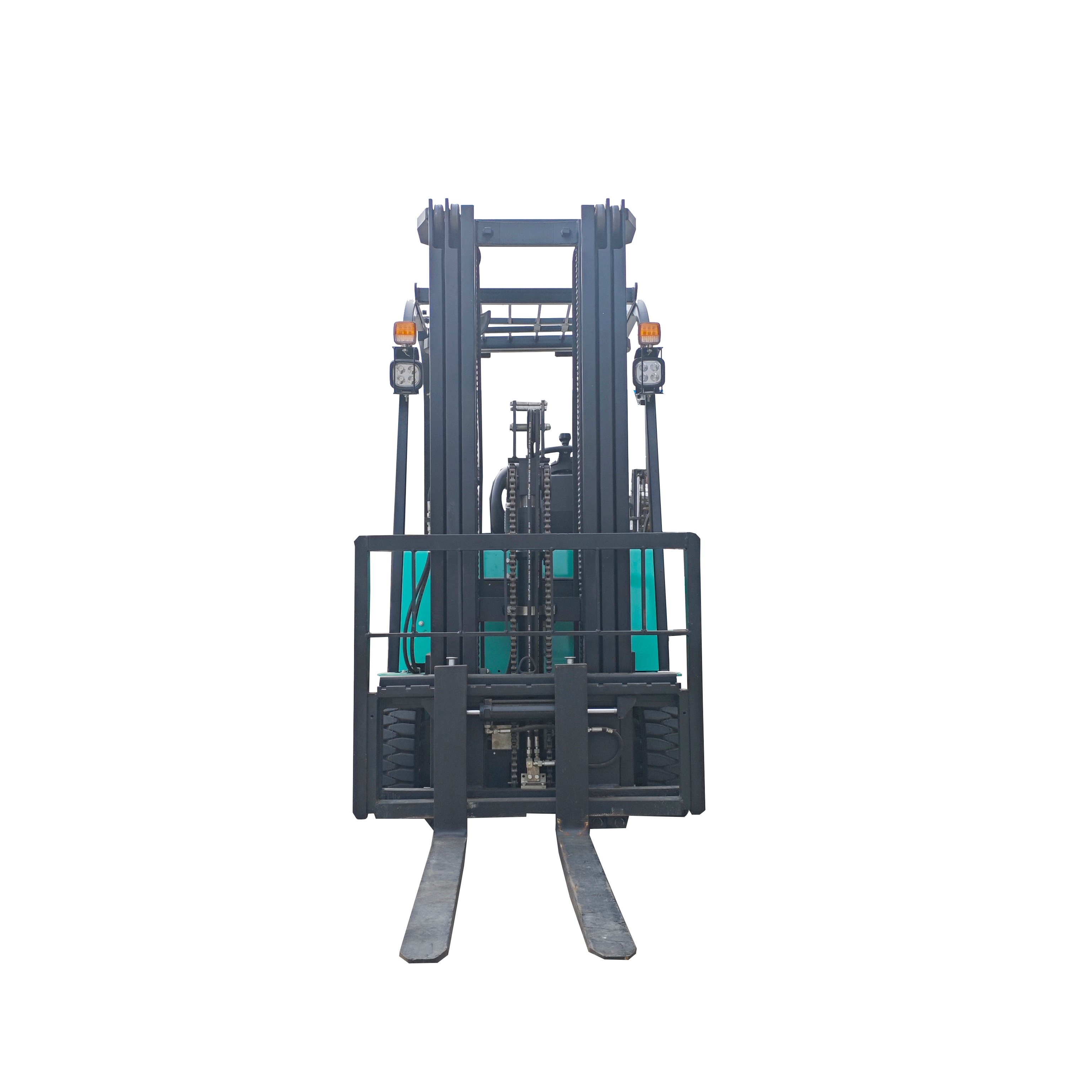

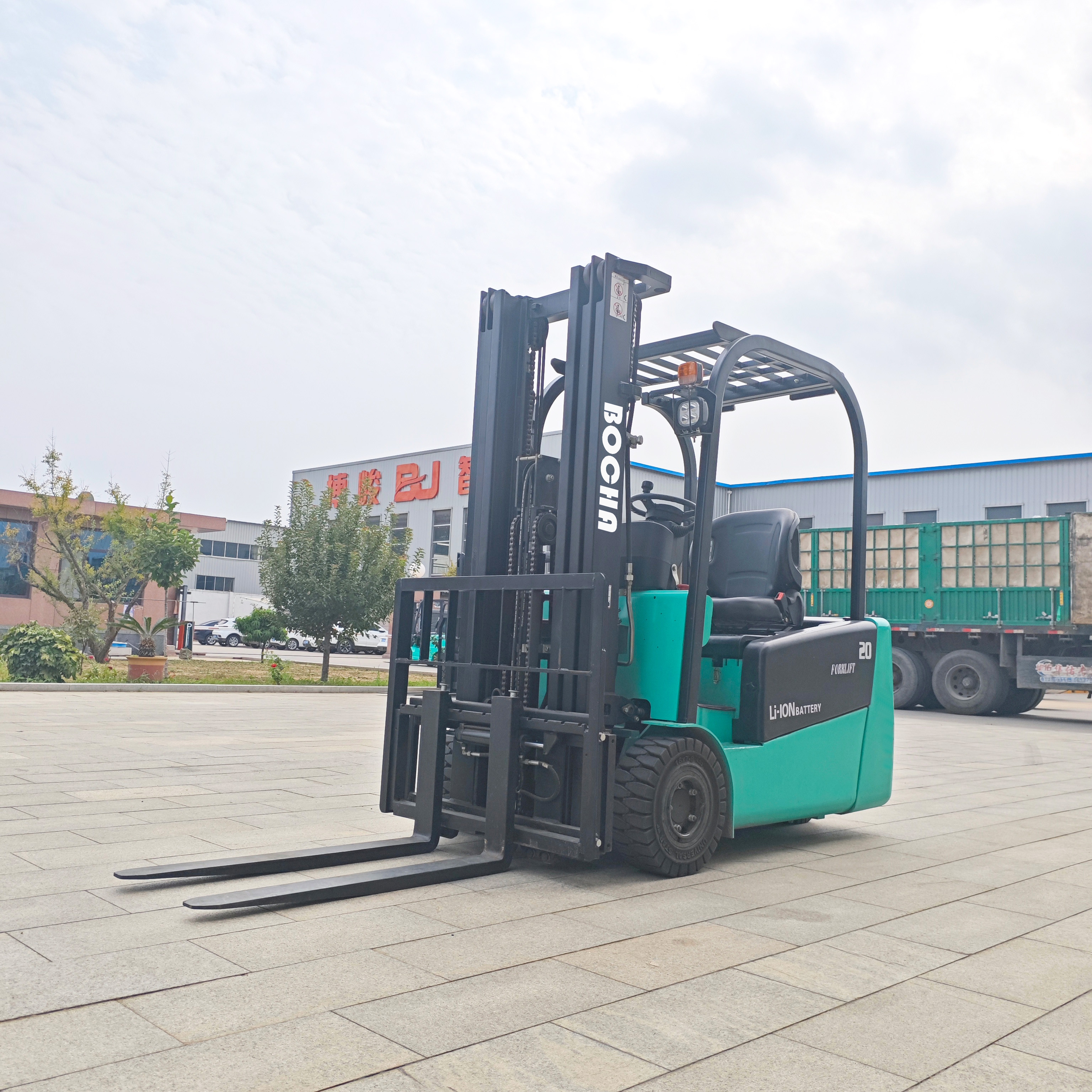

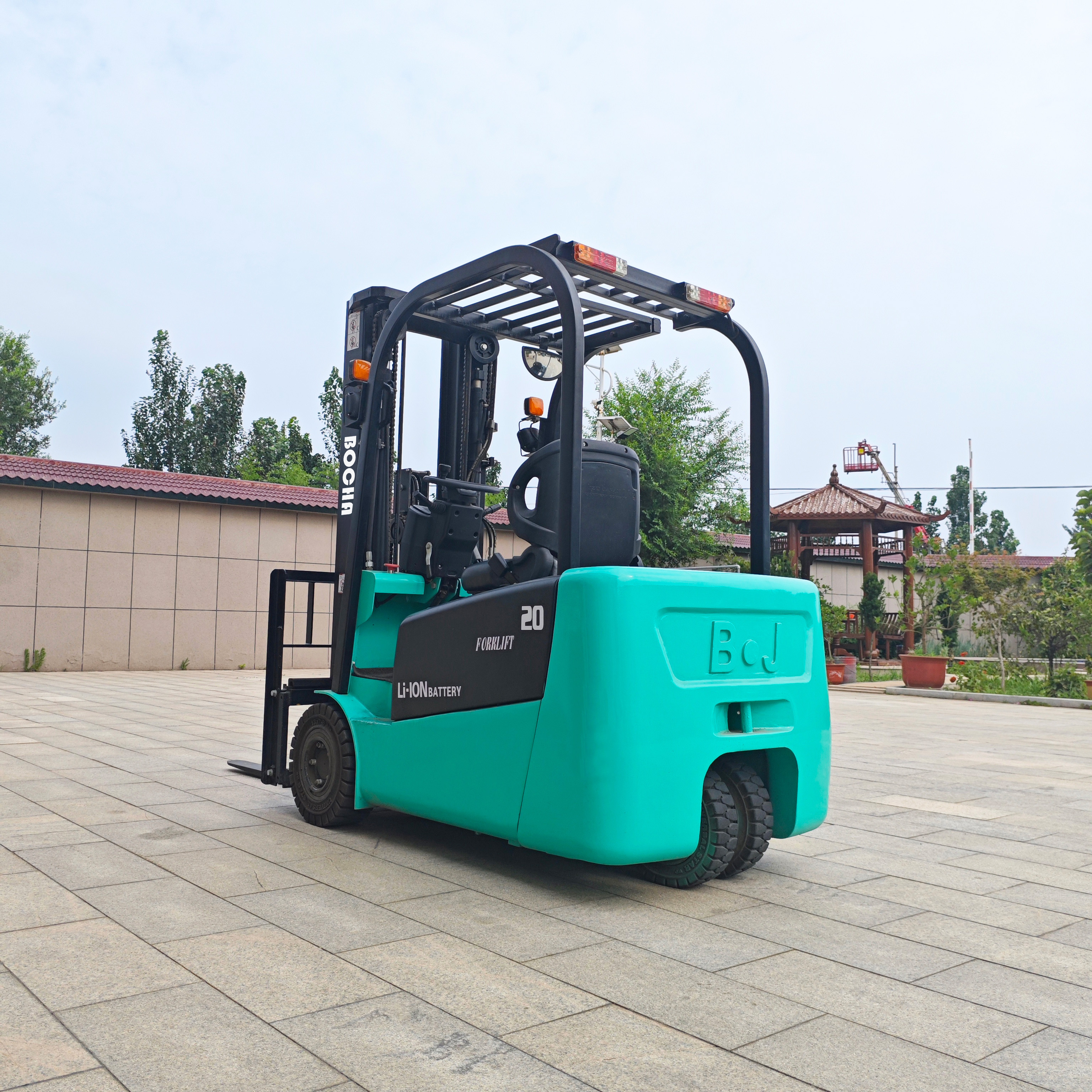

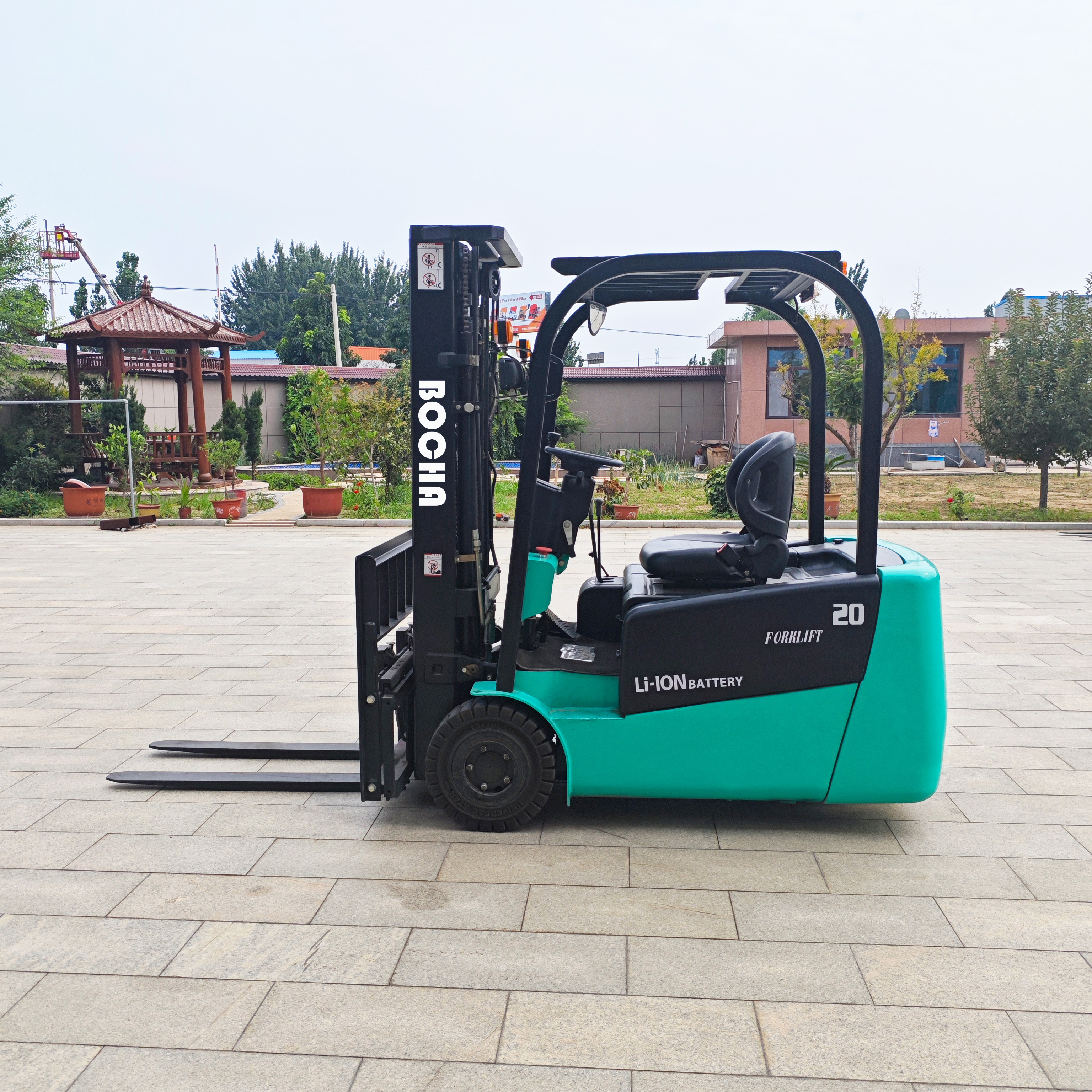

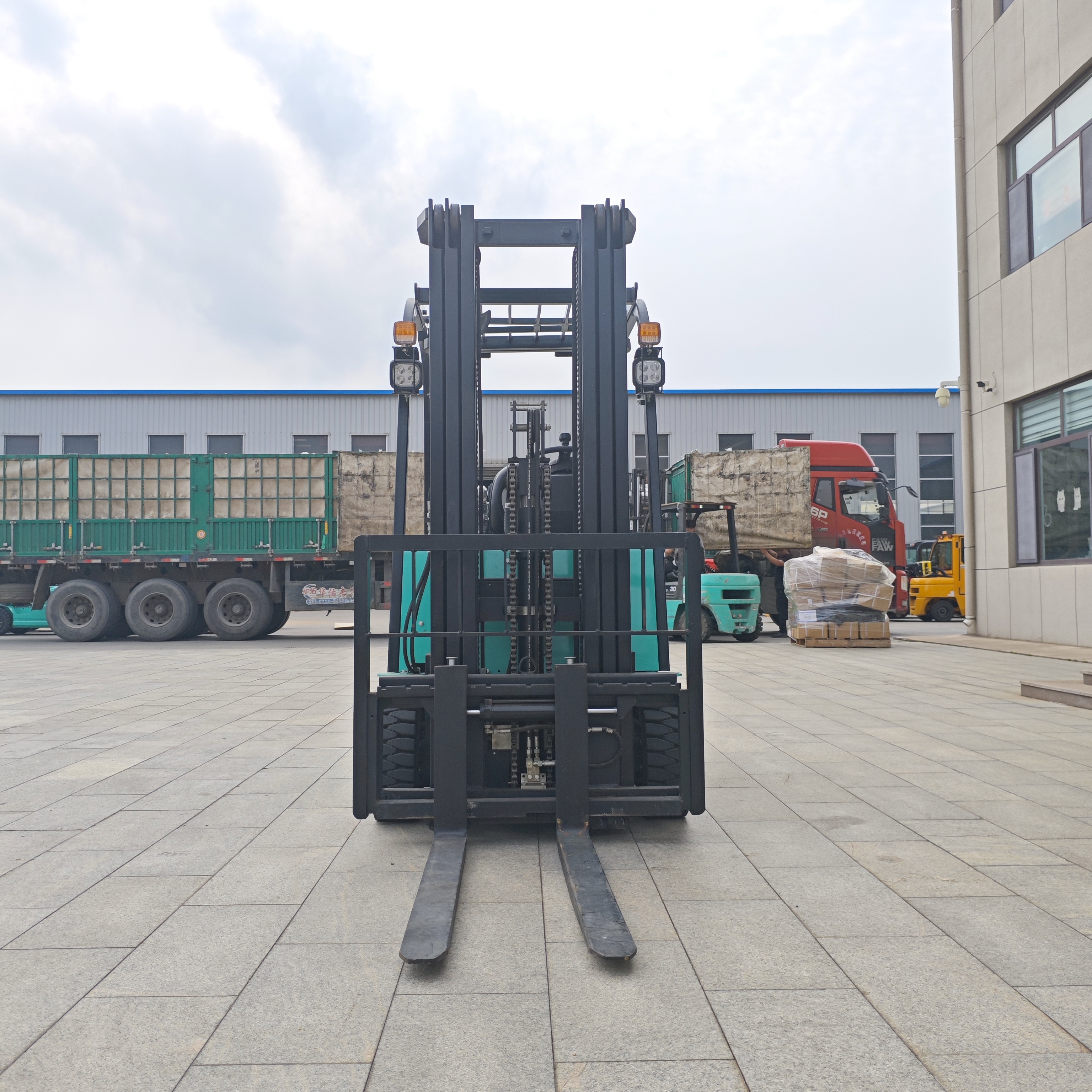

2.0t new energy electric forklift, lithium battery manufacturer direct sales
- Wheelbase：1350mm
- Rated load：2000kg
- Lifting height：3000mm
Technical Parameters
| model | Unit | CPD020Three pivot points |
| Load capacity | kg | 2000 |
| Lift height | mm | 3000 |
| Load centre | mm | 500 |
| Door trame angle | degree | 6-6° |
| Gradient | degree | 15° |
| L*W*H)Length Width Height | mm | 2030（不含货叉）*1060*2090 |
| The goods fork length | mm | 920 |
| Furcation length | mm | 800 |
| Overhead guard height | mm | 1950 |
| wheel base | mm | 1350 |
| groubd clearance under mast | mm | 98 |
| front gauge | mm | 920 |
| track rear | mm | 190 |
| Batteryvoltge/capacity | v/Ah | 51.2V/210Ah |
| Net weight | ton | 3150 |
| Reference time | h | 4-5 |
| charging time | h | 2 |
| Driving motor | w | 4.5*2 |
| Lifting motor | w | 11 |
| Motor type | / | AC motor |
| Controller | / | JC |
