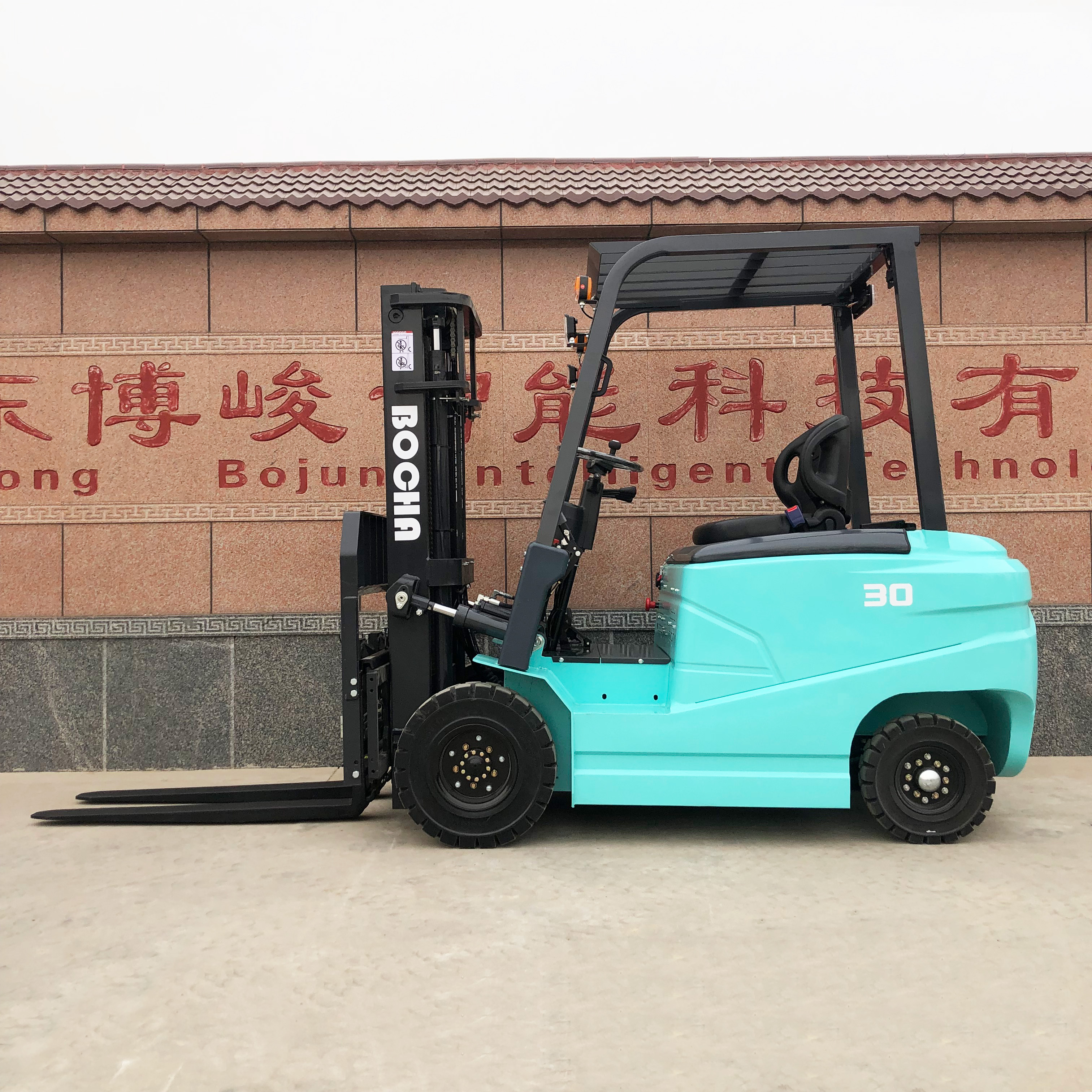

| model | Unit | CPD030J |
| Power type |
| electric |
| Rated load | Kg | 3000 |
| Load center distance | mm | 500 |
| Maximum lifting height of fork shelf with blocking | mm | 3900 |
| Maximum lifting height | mm | 3000 |
| Full height of gantry fork landing, gantry vertical | mm | 2100 |
| Distance from seat surface to roof protection frame | mm | 990 |
| Full height roof protection frame | mm | 2150 |
| Full lengthwithout fork | mm | 2700 |
| Front overhang distance | mm | 100 |
| Rear overhang | mm | 200 |
| Wheel base | mm | 1580 |
| Minimum ground clearance | mm | 150 |
| Full width | mm | 1100 |
| Fork pitch outside max/min | mm | 1000/800 |
| Track width front/rear | mm | 1000 |
| Outside of minimum turning radius | mm | 2300 |
| Inside of minimum turning radius | mm | 550 |
| Gantry tilt Angle(front/back) | mm | Front 6, Rear 12 |
| Fork size | mm | 1070*45*120 |
| Maximum driving speed full load/no load | Km/h | 12 |
| Maximum climbing capacity full load/no load | % | 10 |
| Total weight | Kg | 3900 |
| / |
|
| Number of wheels x/drive wheel | / | 2X/2 |
| Tire type front/rear | / | solid tire |
| Front tire | / | 6.50-10 |
| Rear tire | / | 5.00-8 |
| Storage Battery Voltage/Capacity | V/Ah | 60V 75Ah |
| Walking motor | W | 11000W AC machine |
| voltage | V | 60V 75Ah |
| controller | / | Hagrid controller |
| battery | / | 10 maintenance free batteries (12V-85A) |
| Lighting and Signal | / | Lighting fixtures, left and right turn signals, brake lights, driving lights, |
| Drive axle | / | Cast steel integrated car specific bridge |
| steering axle | / | Heavy duty steel plate and vehicle specific rear axle |
| Braking method | / | Hand brake, oil brake |
| Lift up the oil cylinder | / | High precision aviation grinding sleeve unidirectional double oil cylinder |
| Hydraulic lifting motor | / | 8000W AC motor |
| Steering method | / | Hydraulic power assist method |
| Turning radius | mm | 2520mm |
