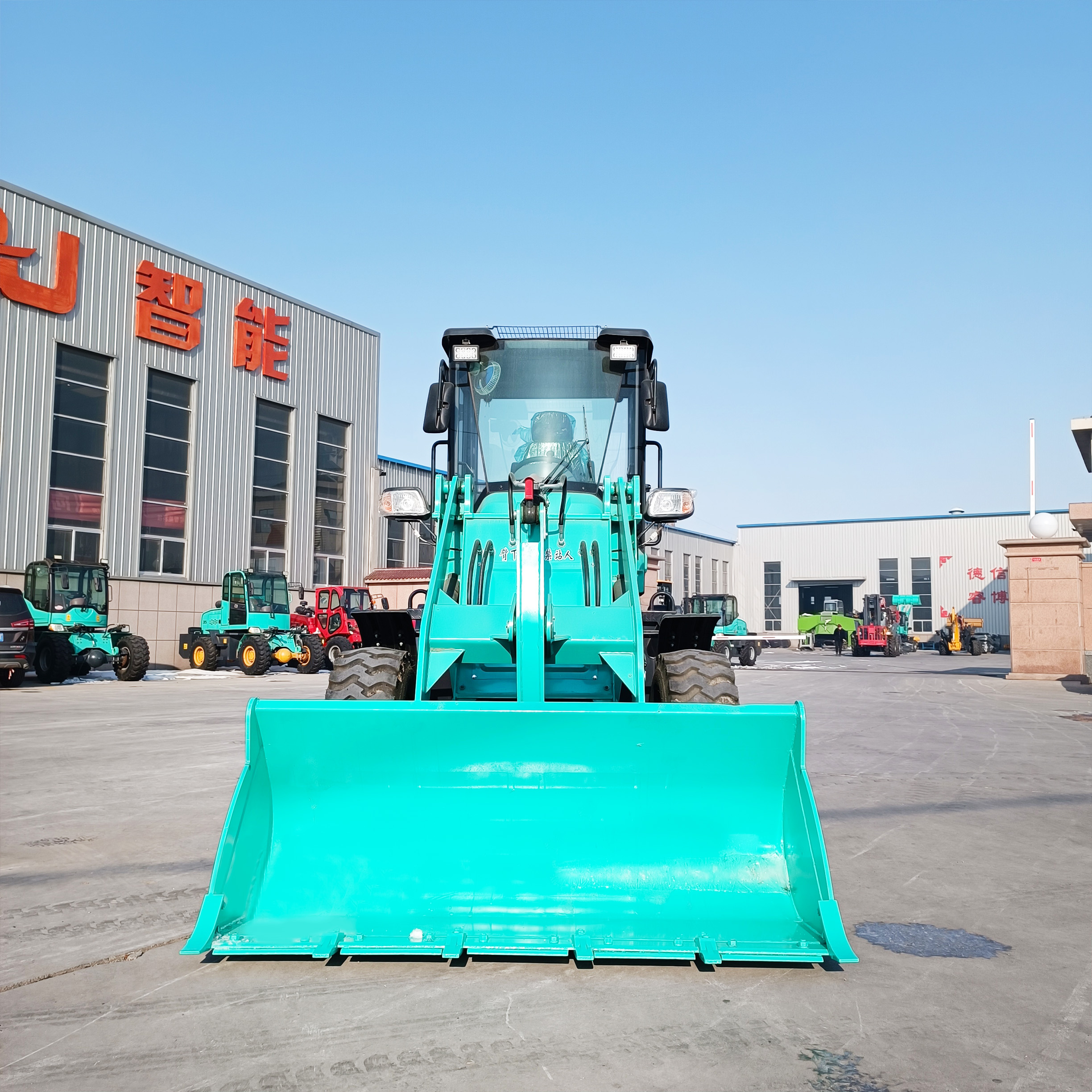

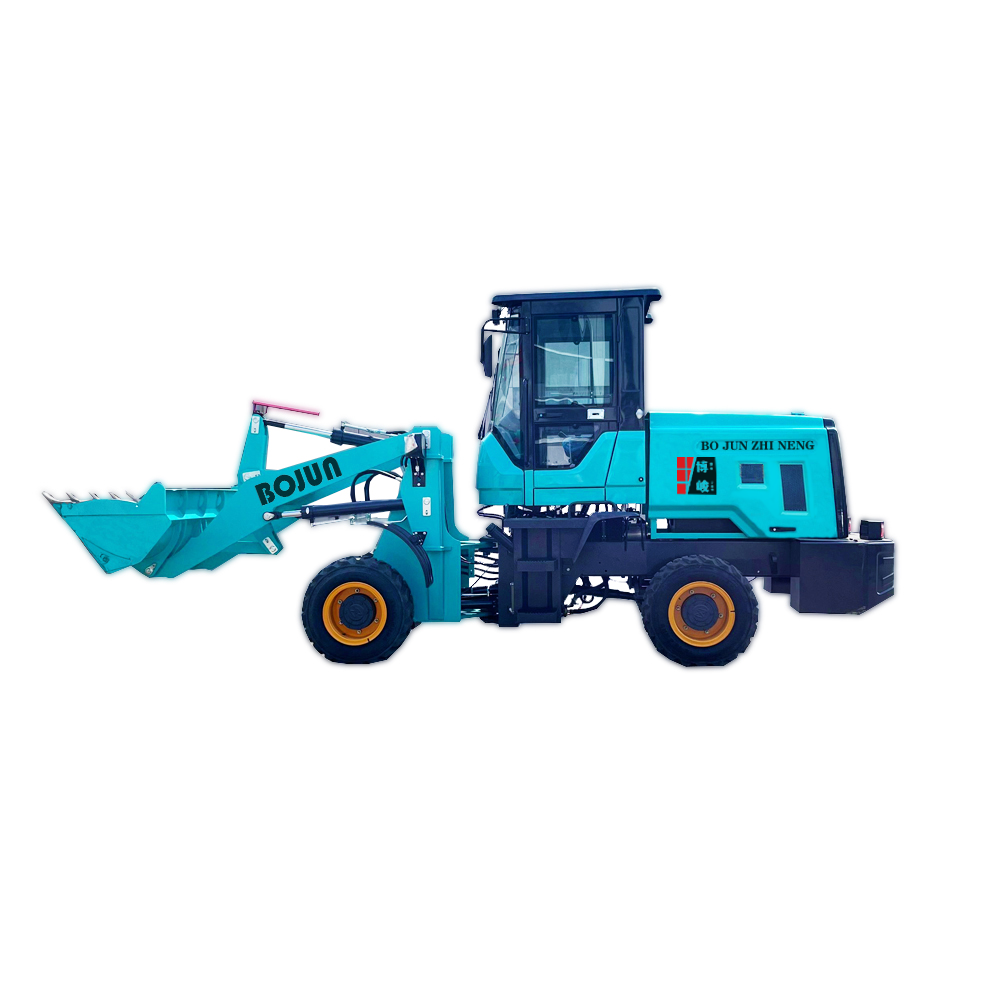

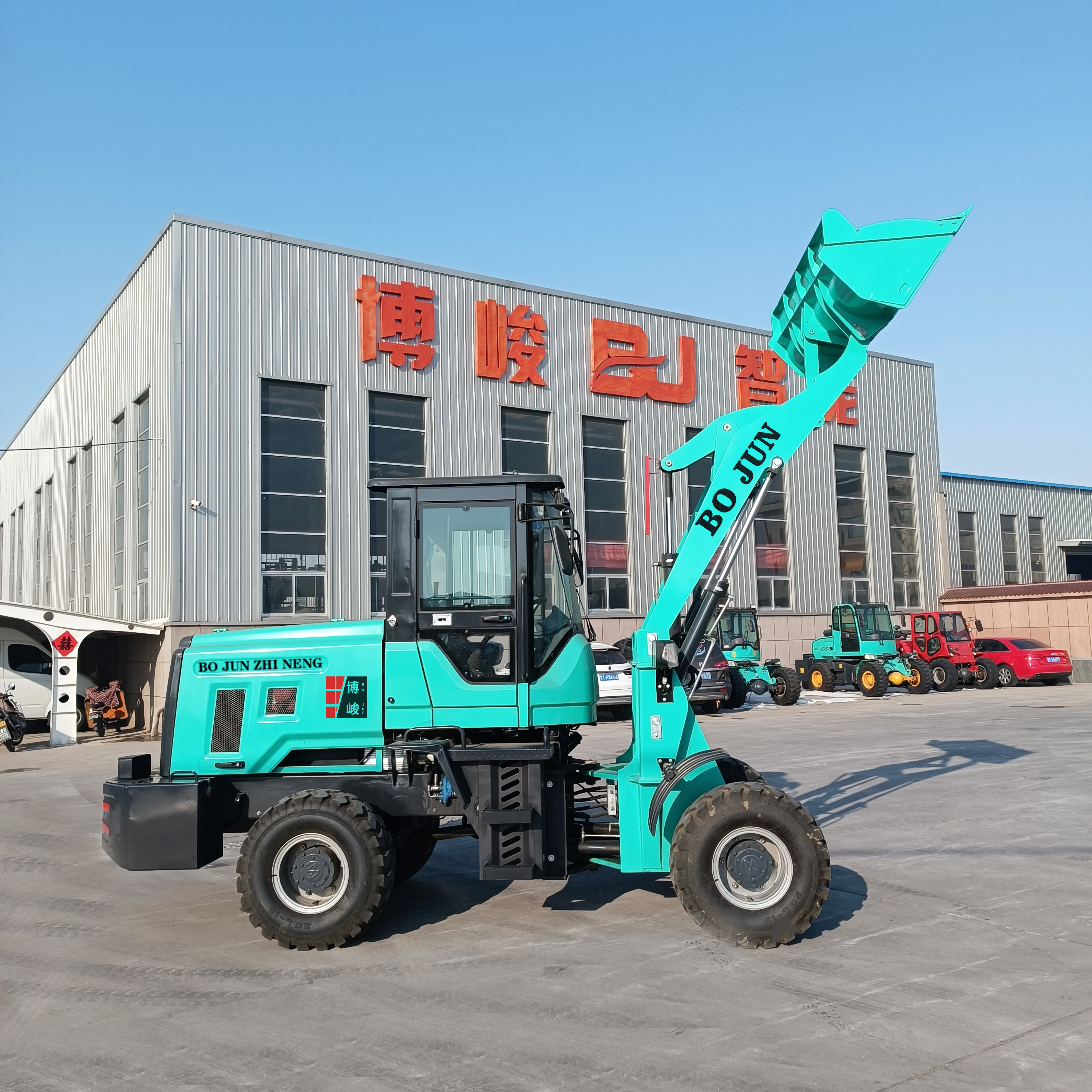

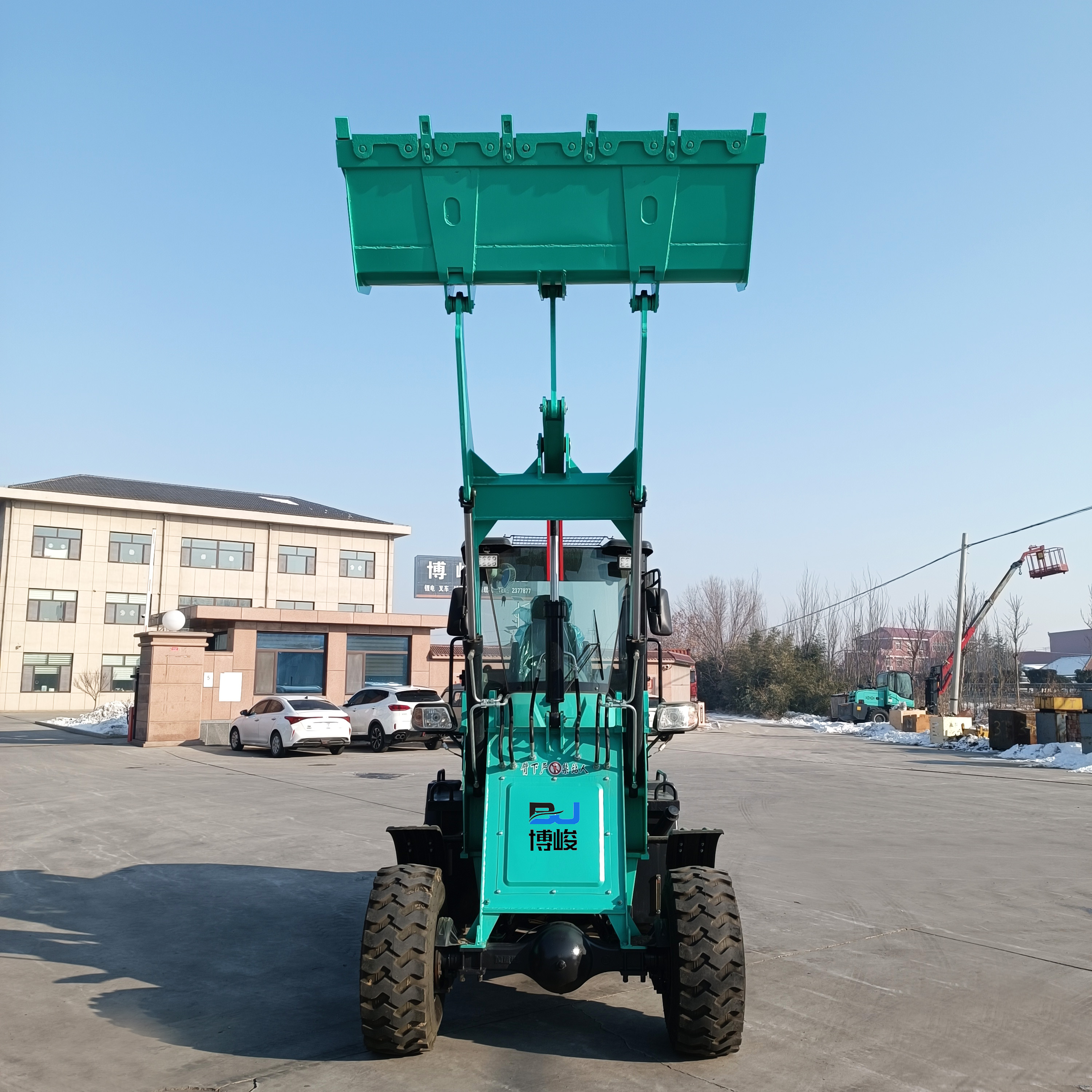

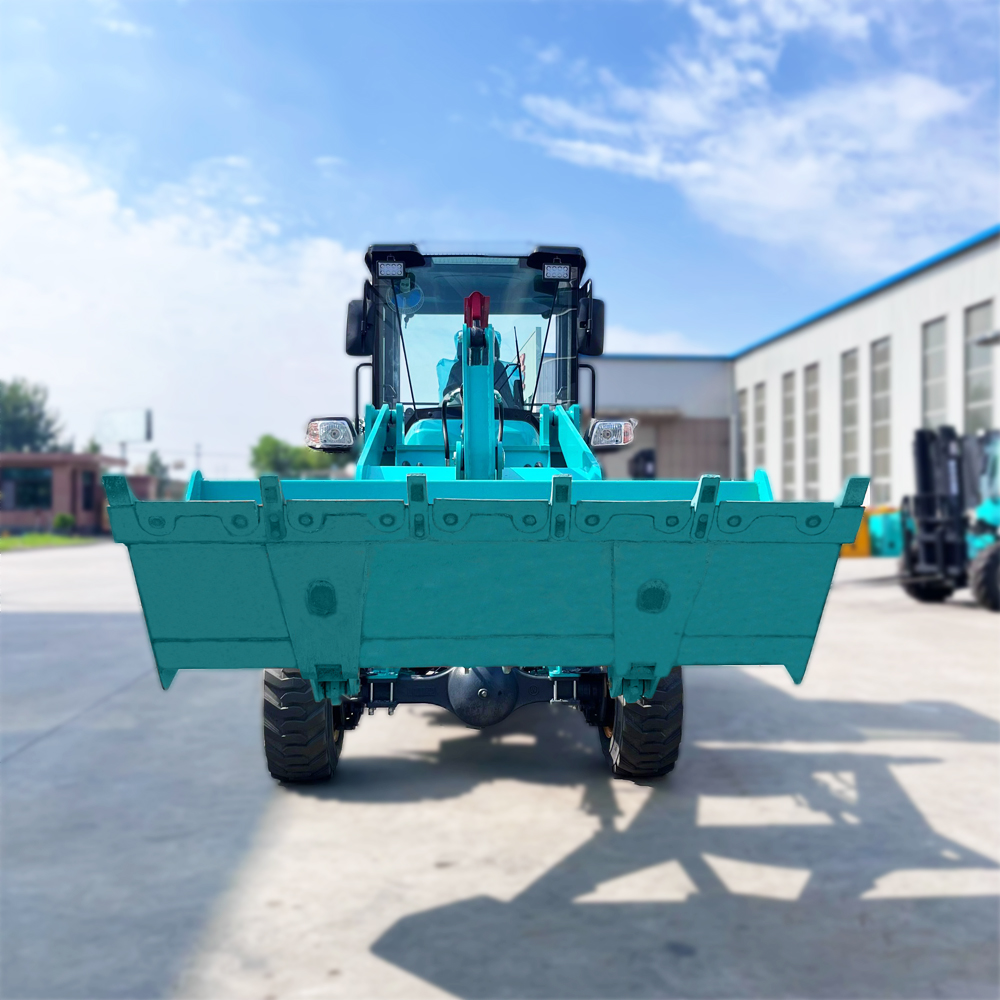

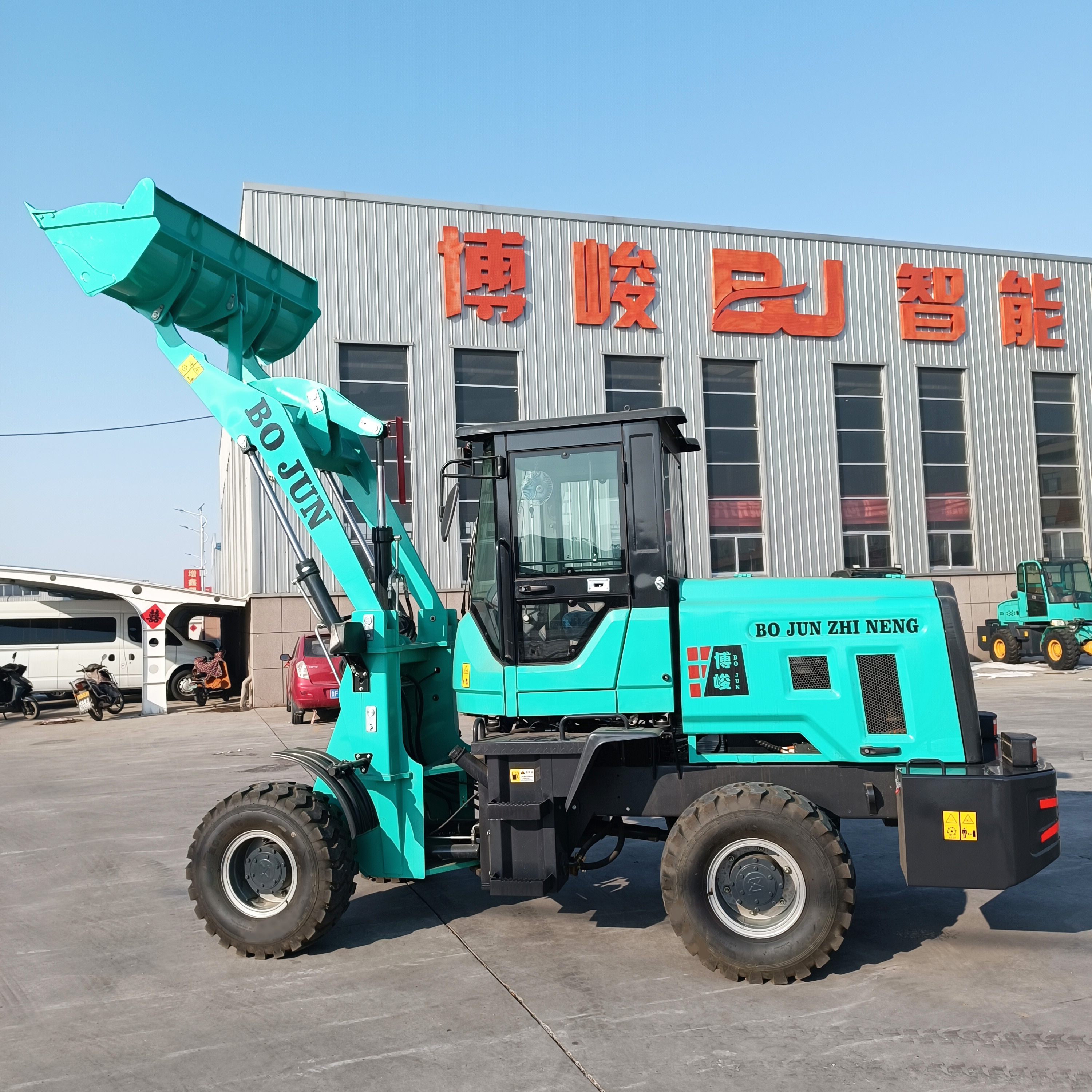

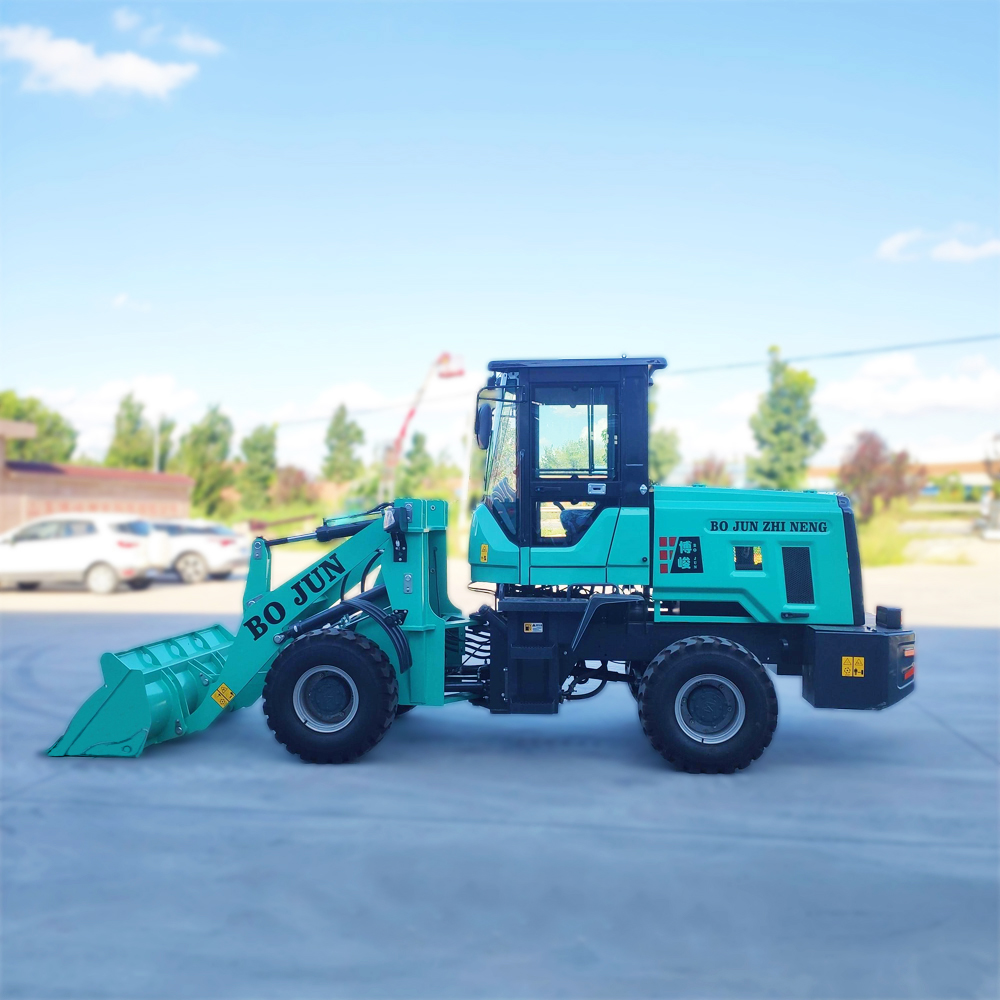

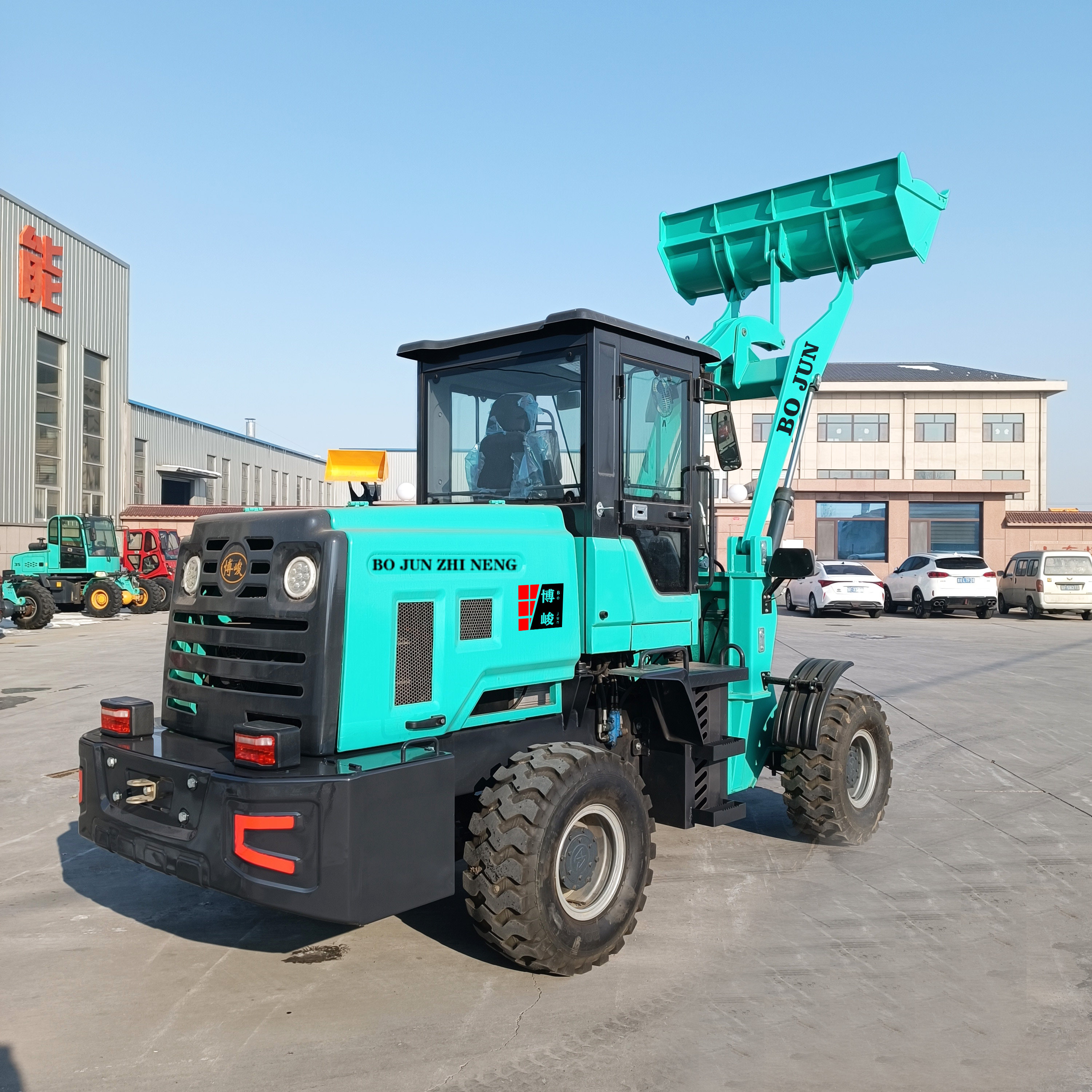

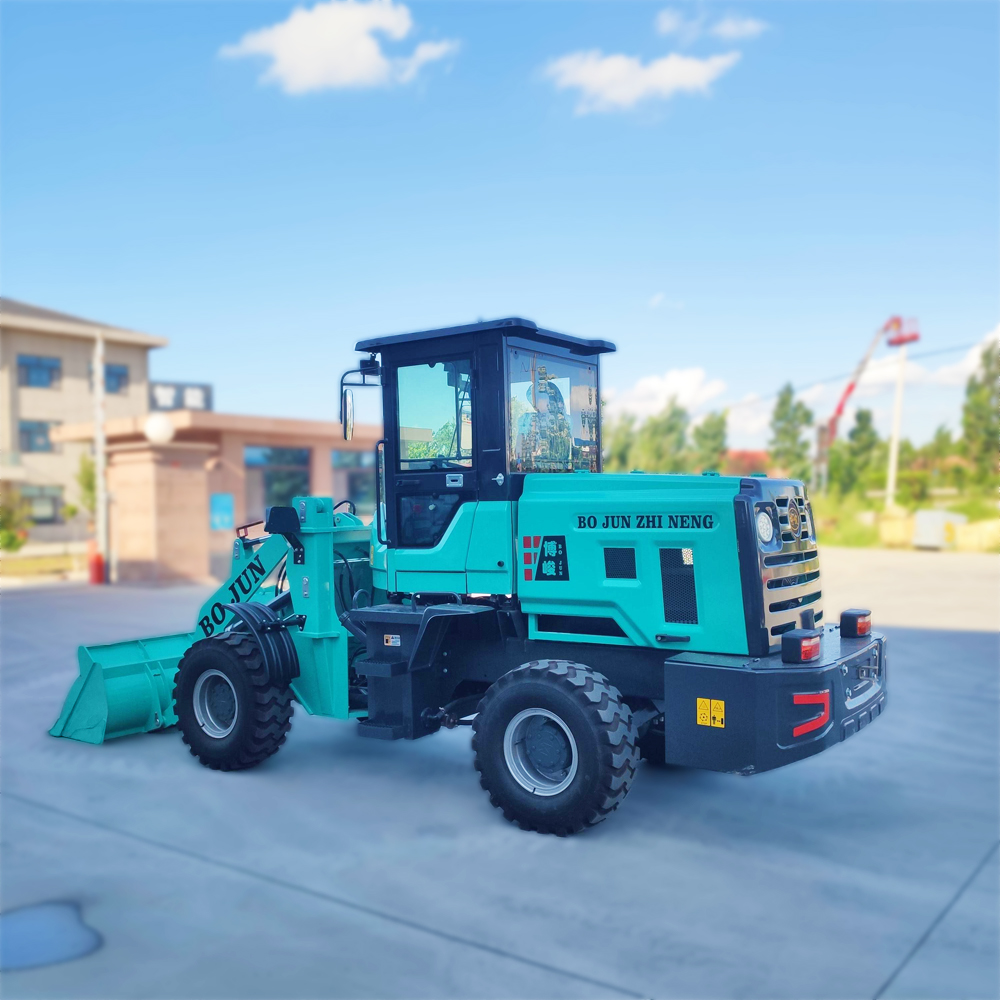

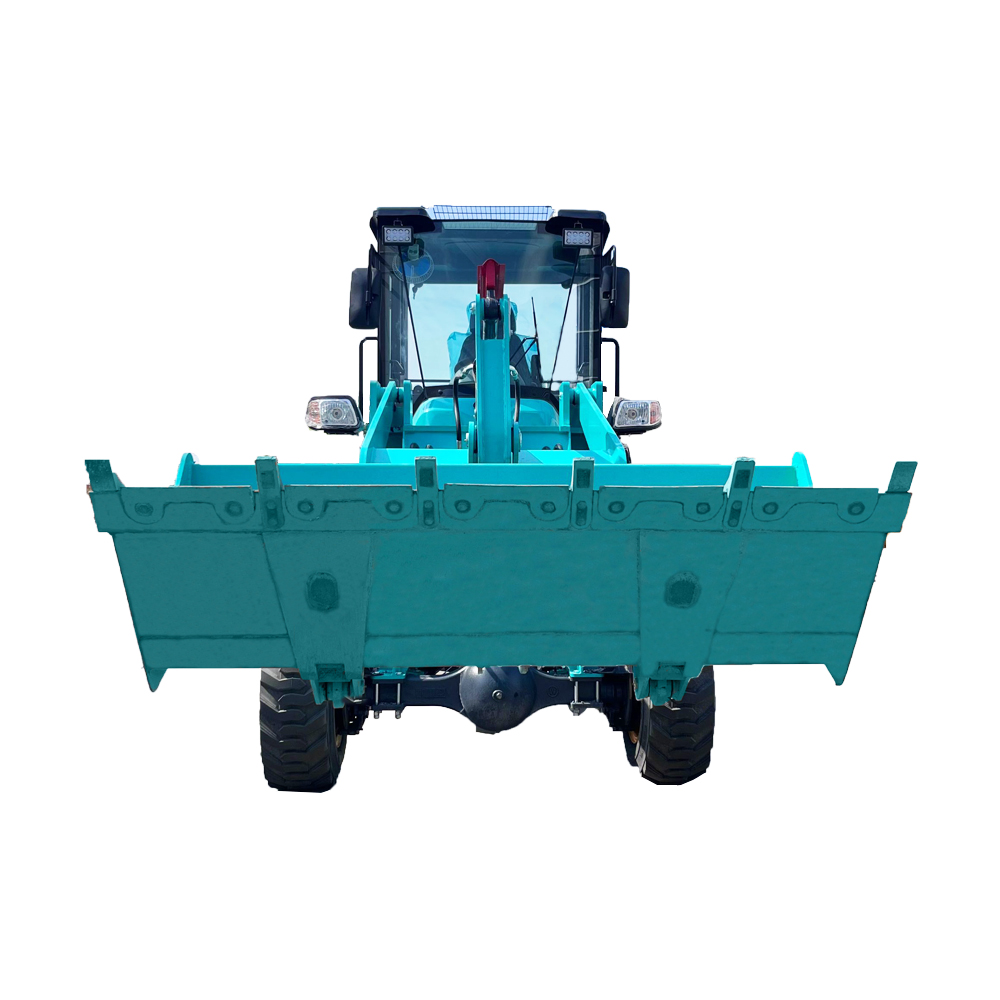

ZL-932 Small Forklift New Energy Loader
- Wheelbase：2270mm
- Rated load：900mm
- Lifting height：3200mm
Technical Parameters
| Model | Unit | ZL-932Lithium battery loader |
| Pated bucket capacity | m³ | 1.1 |
| Rated load | kg | 1500 |
| Discharge height | mm | 3200 |
| Uninstall the distance | mm | 900 |
| Movable arm promotion | second | 7 |
| Maximum speed | km/h | 30 |
| Maximum gradability | ° | 30 |
| Steering angle | ° | 34 |
| Minmum ground clearance | mm | 340 |
| wheel base | mm | 2270 |
| Track width | mm | 1440 |
| Motor Power | W | 144V/30KWsingle motor 80V22KWDual motor |
| Battery capacity | mAh | 144V/346AH 80V525AH |
| Tire size | \ | 20.5-16 |
| (L*W*H)(Length Width Height) | mm | 5530*1890*2750 |
| Gradlent | ° | 0.3 |
| charging time | h | 2.5 |
| Driving motor | KW | 30/22(Dual motor) |
| Power type | \ | electric |
| The goods fork width | mm | 1830 |
| Net weight | KG | 3680 |
| Reference time | h | 5-6 |
