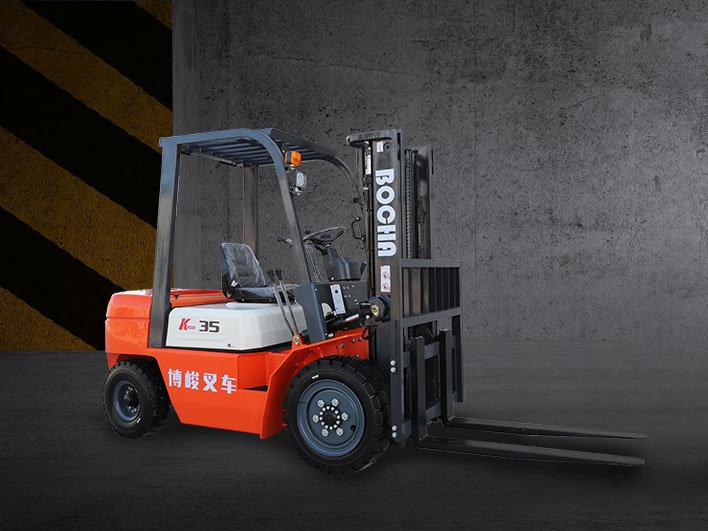

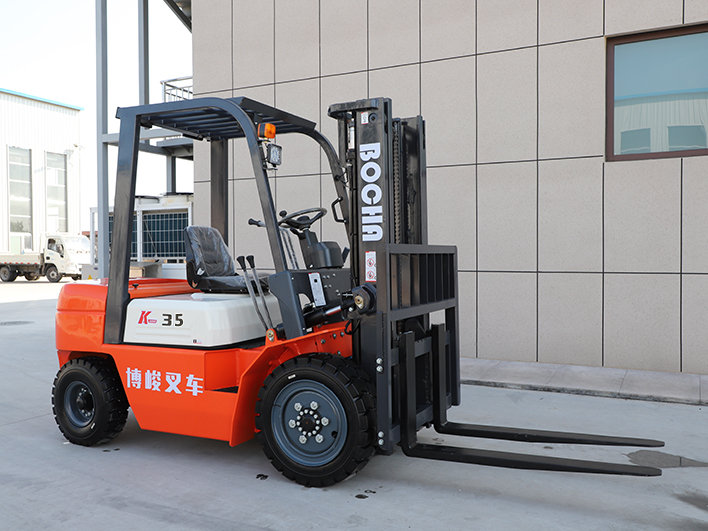

| 3.5 ton diesel counterbalanced forklift parameter configuration |
| model | CPCD35 | model | CPCD35 |
| Power type | diesel fuel | Full length without fork mm | 2700 |
| Rated load Kg | 3500 | Overall width mm | 1226 |
| Load center mm | 500 | The maximum lifting height of the fork (shelf with block) mm | 4265 |
| Lifting height mm | 3000 | Floor height of mast mm | 2060 |
| Free lifting height mm | 100 | Front wheel | 28*9-15-12PR |
| Fork size mm | 1070*125*50 | rear wheel | 6.50-10-10PR |
| Mast inclination front/rear | 6/12 | Wheelbase mm | 1700 |
| Minimum turning radius mm | 2550 | Wheel base front wheel/rear wheel mm | 1000/970 |
| Minimum right-angle stacking channel width mm | 4280 | Weight without load Kg | 4560 |
| Minimum right-angle channel width mm | 2235 | Battery voltage/capacity V/Ah | 12/80 |
| Minimum ground clearance mm | 135 | engine model | Xinchai 490 |
| Height of overhead guard mm | 2160 | Rated power KW/rpm | 37/2500 |
| Front overhang mm | 495 | Rated torque Nm/rpm | 168/1700-1900 |
| Maximum travel speed at full load Km/h | 20 | Bore*Stroke mm | 95*105 |
| Maximum lifting speed full load mm/m | 460 | Number of cylinders | 4 |
| Maximum traction full load KN | twenty two | Displacement L | 2.54 |
| Maximum climbing ability% | 20 | Fuel tank capacity L | 70 |
| Full length with fork mm | 3920 | Working pressure Mpa | 17.5 |
